The Model Element may be graphically represented in the Model with a symbol or other generic representation. Information related to the Model Element can be derived from other Model Elements. Any information derived from LOD 100 elements must be considered approximate.
The Model Element is graphically represented within the Model as a generic system, object, or assembly with ap- proximate quantities, size, shape, location, and orientation. Any information derived from LOD 200 elements must be considered approximate.
The Model Element is graphically represented within the Model as a generic system, object, or assembly with ap- proximate quantities, size, shape, location, and orientation. Any information derived from LOD 200 elements must be considered approximate.
The Model Element is graphically represented within the Model as a specific system, object, or assembly in terms of quantity, size, shape, location, orientation, and interfaces with other building systems. Non-graphic information may also be attached to the Model Element.
The Model Element is graphically represented within the Model as a specific system, object or assembly in terms of size, shape, location, quantity, and orientation with detailing, fabrication, assembly, and installation information. Non-graphic information may also be attached to the Model Element.
The Model Element is a field verified representation in terms of size, shape, location, quantity, and orientation. Non-graphic information may also be attached to the Model Elements.

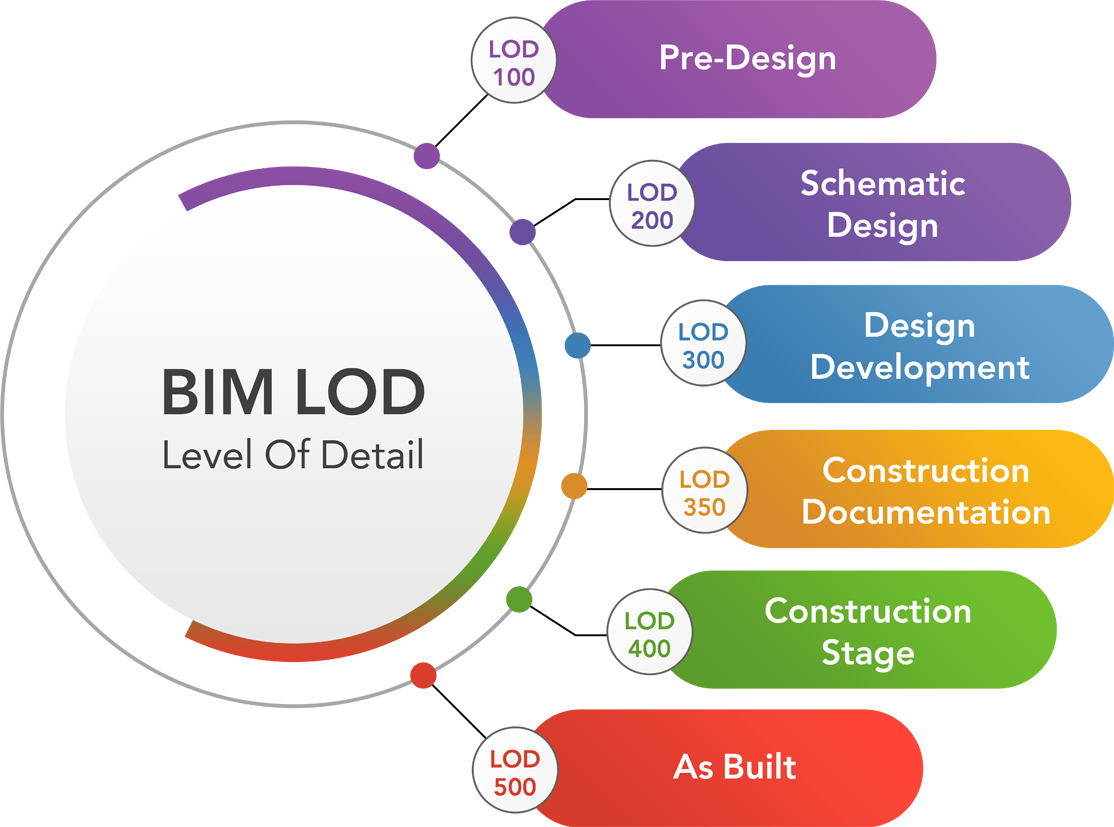

The BIM's Level of Detail (LOD) - defines how the 3D geometry of the building model can achieve different levels of refinement, is used as a measure of the service level required.
Using the Level of Detail (LOD) industry specifications as a guide, ACUBIM 3D Modelling Service will create a 3D model of your projects based on the specificity required.
As a reliable BIM partner for your firm, we offers comprehen- sive range of Building Information Modelling (BIM) Services, we deliver quality drawings and models to the client.
We also have manpower deployment service to the client, serving all size of companies by providing them CAD/BIM technicians & BIM Coordinators. It's cost effective and hassle free to the client.
Our team leads / BIM coordinators collaborate with your design team to understand and analyze the requirements closely for outputs with finest quality and topmost accuracy within stipulated time frame.
Professional and very good quality of service, great customer service as well as fast response.
The team Completed the work in a professional way as we were very comfortable with them as well as the team were also very
Very satisfied with the good level of the overall work, experienced & professional. Very good after cleaning & tidying up. Good standards.
